16-Channel DVI HD Audio/Video Matrix Switcher

16-Channel DVI HD Audio/Video Matrix Switcher

NV-MCMC-MCS-B737

Description

DVI HD Audio/Video Matrix Switcher is a professional matrix switcher of high-performance embedded intelligent control. It provides a peak data transfer rate of 3.25Gbps and perfectly supports synchronous switching of HDMI audio/video signals, adapts to 7×24 uninterrupted work and the average time between failures is more than 30,000 hours, which provides a stable and reliable high-definition audio and video signal transmission switching hub for the system. It is widely applied in digital video multi-screen display systems, radio and television systems, multimedia video conference, large screen display systems, high definition television teaching, visual command and control centers, medical teaching, etc.

Features

* Input and output: Support 16-Channel HDMI Audio/Video signal input and 16-Channel HDMI Audio/Video signal output.

* Board card plug-in structure: support board card heat insertion.

* Support scalable HDMI output seamless switching function.

* Support HDCP management, can encrypt and decrypt HDCP, ensure that the signal source displaces properly.

* Support EDID management, can store 8 groups of EDID data, allow reading the output device EDID or stored and apply it to any input cards, can send EDID codes to EDID storage area via the serial port, can read the current output EDID codes via the serial port.

* Power-off memory function and scene memory function: power-off site protection; can save and call 10 switching states.

* Support forward high-speed channel and embedded control signal separation switch modes.

* Support Full HD: HDPC: HDPC:1920X1200P@60_24bit, HDTV:1920X1080P@60_36bit.

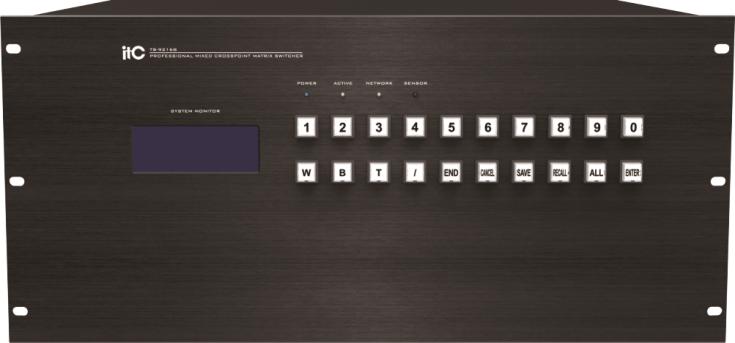

* Luxury crystal buttons with luminous indicator function, the current switch information can be obtained directly from the LCD screen, easy to operate.

* Support 3D, HDMI 1.4, HDCP1.4, and DVI 1.0 protocol. Support high color depth, and up to 3.25Gbps rate.

* 2-Channel RS-232 communication interface.

* 1-way network port can control remotely via Ethernet, support simultaneous connections up to 8 users.

* Built-in universal power supply.



Model NV-MCMC-MCS-B737
Video
Gain 0 dB
Pixel Bandwidth 225MHz, full digital
Interface Bandwidth 3.25Gbps, full digital
Max Support Resolution

HDPC: 1920x1200P@ 60_24bit

HDTV: 1920x1080P@60_36bit
Clock Jitter <0.15 Tbit
Rise-Time <0.3Tbit (20%–80%)
Fall-Time <0.3Tbit (20%–80%)
Max Transmission Delay 5nS(±1nS)
Switching Speed 200 ns(Max duration)
Signal Type DVI 1.0 standard DVI-D full digital T.M.D.S signal
Video Input

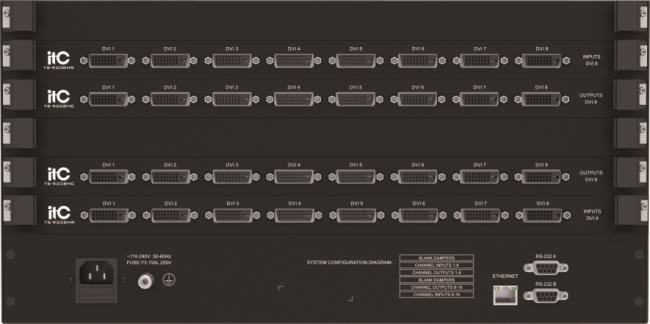

Interface DVI-D female interface
Signal Strength T.M.D.S +/- 0.4Vpp
Max/min Level T.M.D.S 2.9V/3.3V
Input EDID EDID can be erased presently
Impedance 50Ω
The Maximum Error of The Dc Bias 15mV
Max Input Distance 20m
Video Output
Interface DVI-D female interface
Max/min Level T.M.D.S 2.9V/3.3V
Impedance 50Ω
 Max Input Distance  20m
Serial Port Control
Number 2
Serial Control Interface RS-232, 9-pin female D type interface
Baud Rate And Protocol baud rate: 9600,  data bit, 8-bit,  stop bit: 1, white parity bit
Serial Port Control Structure 2=TX, 3=RX, 5=GND
Ethernet Control
Ethernet Control Interface RJ-45 female interface
Ethernet Control Protocol  TCP/IP
Ethernet control Rate Adaptive 10M/100M, full duplex or half duplex
Specification
Power Supply 100V AC~240V AC, 50/60 Hz
Max Power Consumption 208W
Weight About 10kg
Storage and Usage Temperature -20℃~+70℃
Storage and Usage Humidity 10%~90%
Rack Dimension 5U
MTBF 30,000 hours
Dimension (mm) 484(L)×356(W)×220(H)
