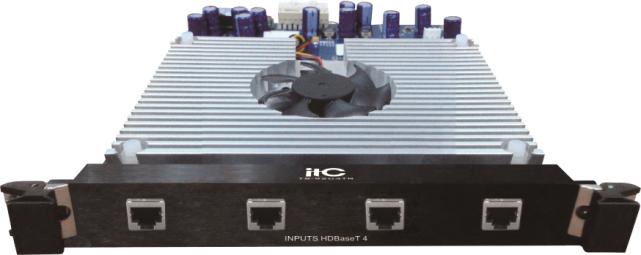

4 Channel HDBaseT Input Card

4 Channel HDBaseT Input Card



Specifically designed for the intelligent HD Matrix Switchers, support 4- channels high-speed RJ45 interface input, support the transmission of Digital HD 1080P signal, with highly integrated board design, you can choose the quantity of board card according to your demands, which brings great convenience for application maintenance.


  • 4- channels high-speed RJ45 interface input.
  • Use CAT5e/6 wire, the longest distance is 100m.
  • Pixel bandwidth: 225MHz, all-digital.
  • Interface bandwidth: 3.25Gbps, all-digital.
  • Support EDID editing function.
  • compatible with HDBaseT protocol.
  • Maximum support resolution:
  • HDPC: 1920 x 1200P@60_24bit, HDTV: 1920 x l080P@60_36bit.
  • Plug and play, very convenient.


Interface 4- channels high-speed RJ45 interface input
Pixel Bandwidth 225MHz, all-digital
Interface Bandwidth 3.25Gbps, all-digital
Maximum Supporting  Resolution Normal-PC: 1600 x 1200@60_24bit
HDTV: 1920 x 1080P@60_36bit
HDCP: 1920 x 1200P@ 60_24bit
Signal Type High-speed differential signal defined in HDBaseT protocol
Max Power consumption 22W
Weight About 0.8Kg
Max Input Distance 100m
