Description

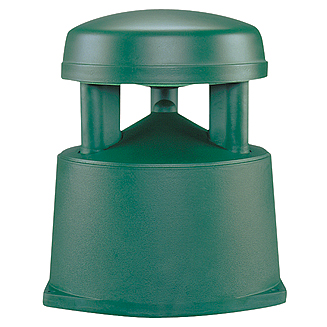

The NV-PASP-GDSP-338 is a landscape garden speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distances and allows easy parallel connection of multiple loudspeakers.
The built-in 6” +1.5” two-way speaker drivers are designed for wide frequency response 120-15kHz, the multiple power taps of 7.5W & 15W could meet different applications varies from room size and ambient noise surroundings.
The organic resin enclosure is of green color and of weatherproof and heavy damage proof finish. Easy and secure wall mount installation in the outdoor area.
It is an ideal choice for park, playground, swimming pool, and garden, etc outdoor applications where background music and paging are needed. It is designed for IP66 waterproof level, so it could be directly exposed to outdoor severe environment, the organic resin material is strongly resistant to cold, snow, ice, high temp, and sunshine.
Features
Specifications
Model | NV-PASP-GDSP-338 |
Power Taps @100V | 7.5W, 15W |
Power Taps @70V | 3.8W, 7.5W |
Impedance | Black: Com White: 1.3KΩ Green: 670Ω |
SPL(1W/1M) | 95dB |
Max. SPL (Rated W/1M) | 108dB |
Frequency Response (-10dB) | 120-15KHz |
Finish | Organic resin |
Speaker Driver | 6″ x 1 1.5″ x 1 |
IP Rate | IPx6 |
Cutout Size | 251x 251x251mm |
Dimensions(mm) | H:350 |
Weight | 3.6Kg |
