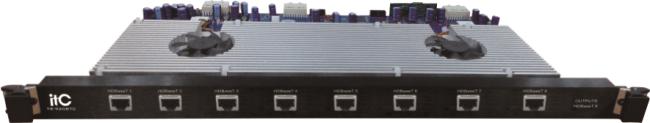

8 Channel HD BaseT Output Card

8 Channel HD BaseT Output Card

NV-MCMC-MCS-TC761

Description

Specifically designed for the intelligent HD Mixed Matrix Switcher, it supports 8-channels high-speed RJ45 Interface output, support the transmission of digital HD 1080P signal, with highly integrated board design. You can select any number of card arbitrarily according to your demands, which brings great convenience for applications and maintenance.

Featured

  • 8- channel high-speed RJ45 Interface output.
  •  Use CAT5e/6 wire, the longest distance is 100m.
  • Pixel bandwidth: 225MHz, all digital.
  • Interface bandwidth: 3.25Gbps, all digital.
  • Support EDID editing function.
  • Compatible with HDBaseT Protocol.
  • Maximum support resolution: HDPC: 1920 x [email protected]_24bit, HDTV: 1920 x [email protected]_36bit.
  • Plug and play, very convenient.



Specifications



Model NV-MCMC-MCS-TC761
Interface 8-channels high-speed RJ45 Interface output
Pixel Bandwidth 225MHz, all-digital
Interface Bandwidth 3.25Gbps, all-digital
Max Support  Resolution Normal-PC: 1600 x [email protected]_24bit
HDTV: 1920 x [email protected]_36bit
HDCP: 1920 x [email protected] 60_24bit
Signal Type High-speed differential signal defined in HDBaseT protocol
Specifications
Max Power Consumption 21W
Product Weight About 1Kg
Max Input Distance 100m
