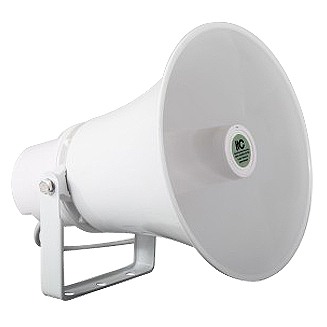

The NV-PASP-HNSP-R308 is a waterproof horn speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distances and allows easy parallel connection of multiple loudspeakers.
The built-in horn speaker driver is designed for wide frequency response 300-13kHz, the multiple power taps 15W & 30W are helpful for different applications varies from room size and ambient noise surroundings.
The ABS enclosure and stainless bracket are of white color. Easy and secure wall mount installation through the supplied stainless mounting bracket.
It is the ideal choice for industrial and commercial applications in the outdoor area of parking, park, garden, corridor, and playground where paging is needed.
Built-in 100v/70v transformer
Waterproof projector type loudspeaker
Supreme longer distance dispersion horn speaker
IP66 waterproof level
Power taps15w-30w @100V
Aluminum enclosure of waterproof finish
Stainless steel mounting bracket
|Power Taps @100V||15W, 30W|
|Power Taps @70V||7.5W, 15W|
|Impedance||Black: Com White: 330Ω Green: 670Ω|
|Max. SPL (Rated W/1M)||121dB|
|Finish||Baffle: Aluminum, White|
|IP Rate||IP 65|
|Dimensions||245 x 245 x 290mm|
|Mounting||With stainless mounting bracket fixed by screw|
