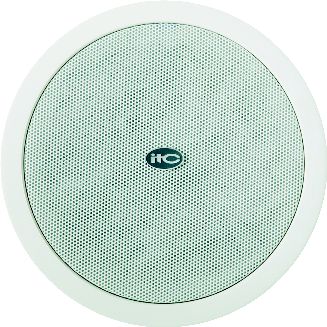

5 Inch Ceiling Loudspeaker(0.75W-1.5W-3W-6W)

5 Inch Ceiling Loudspeaker(0.75W-1.5W-3W-6W)



The NV-PASP-CGSP-Y208 is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distances and allows easy parallel connection of multiple loudspeakers.

The built-in 5″ full-range speaker driver is designed of wide frequency response 100-18kHz, the multiple power taps 0.75W, 1.5W, 3W & 6W are helpful for different applications varies from room size and ambient noise surroundings. The metal grille and metal baffle are painted in attractive white color. Its spring clip clamp makes the easy and secure installation.

It is an ideal choice for industrial and commercial applications in hotel, school, office, and factory where background music and paging is needed.


  • 5” full range superior quality ceiling speaker
  • The good quality driver of excellent frequency response
  • 5 power taps of 0.75W, 1.5W, 3W, 6W @100v
  • Metal baffle, metal grille
  • Easy spring clip installation
  • A metal back box could be added




Power Taps @100V 0.75W,1.5W,3W,6W
Power Taps @70V 0.38W/0.75W/1.5W/3W
Impedance Black: Com Blue: 13.3KΩ Red: 6.7KΩ Green: 3.3KΩ White: 1.7KΩ
Sensitivity 90dB±3dB
Max SPL 98dB±3dB
Frequency Response 100-18KHz
Material Metal
Speaker Unit 5″
Cutout Size 165mm
Dimension 195 x 78mm
Weight 0.9Kg
