Dual-directional Projection Loudspeaker(5W-10W-20W)

Dual-directional Projection Loudspeaker(5W-10W-20W)

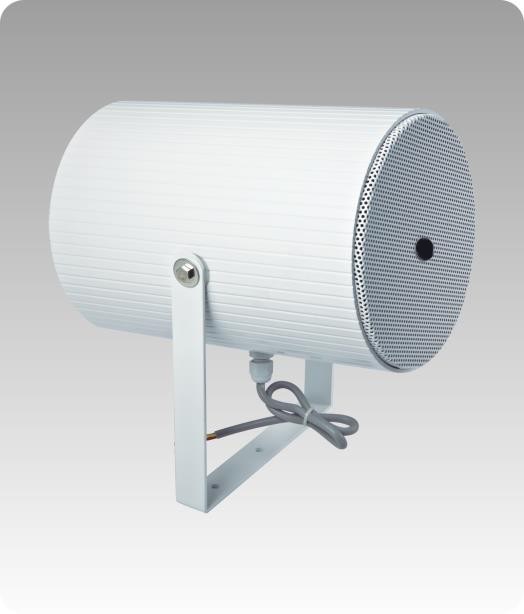

The NV-PASP-DRSP-T301 is a dual-directional waterproof projection speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in two 6” full range speaker drivers are designed of wide frequency response 110-15kHz, the multiple power taps 5W, 10W & 20W are helpful for different applications varies from room size and ambient noise surroundings.

The aluminum enclosure and metal bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.

It is ideal choice for industrial and commercial applications in the outdoor area of train station, shopping mall, parking area and factory where background music and paging is needed.


  • Built-in 100v/70v transformer.
  • Waterproof projector type loudspeaker.
  • 2×6” full range speaker unit.
  • IP6 waterproof level.
  • Power taps 5w-10w-20w @100V.
  • Aluminum enclosure and metal bracket.


Power Taps @100V 5W, 10W, 20W
Power Taps @70V 2.5W, 5W, 10W
Impedance Blue: Com Green: 2 KΩ Yellow: 1KΩ Red: 500Ω
SPL(1W/1M) 92dB
Max. SPL (Rated W/1M) 105dB
Frequency Response (-10dB) 110-15KHz
Finish Baffle: Aluminum, White,   Grille: Steel, White
Speaker Driver 6″ x 2
IP Rate IP x 6
Dimensions 172 x 252mm
Weight 3.3Kg
Mounting With mounting bracket fixed by screw
