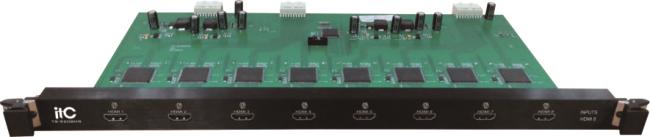

8 Channel HDMI Audio Video Input Card

8 Channel HDMI Audio Video Input Card

NV-MCMC-MCS-HR756

Description

Specifically designed for the intelligent HD Mixed Matrix Switcher, it supports 8-channels HDMI audio and video signal input, supporting Digital HD 1080P signal, EDID editing function, high integrated UnPBX design, can select card quantity according to your need, which brings great convenience for applications and maintenance.

Featured



  • 8- channel HDMI-A female Interface input.
  • The longest input distance is 20m.
  • Pixel bandwidth: 225MHz, fully digital.
  • Interface bandwidth: 3.25Gbps, fully digital.
  • Support EDID editing function.
  • Be compatible with the HDMI 1 .4 standard, HDCP 1 .4 protocol, DVI1 .0 protocol.
  • Maximum support resolution: HDPC: 1920 x [email protected]_24bit, HDTV: 1920 x [email protected]_36bit.
  • Plug and play, very convenient.



Specifications



Model NV-MCMC-MCS-HR756
Protocol Support HDMI 1.4 protocol, HDCP1.4 protocol, DVI 1 .0 protocol
Pixel Bandwidth 225MHz, full digital
Interface Bandwidth 3.25Gbps, full digital
Maximum Support  Resolution

HDCP: 1920 x [email protected] 60_24bit

HDTV: 1920 x [email protected]_36bit
Normal-PC: 1600 x [email protected]_24bit
Clock Jitter <0.15Tbit
Rise time <0.3Tbit (20%–80%)
Falltime <0.3Tbit (20%–80%)
Signal Type HDMI1.4 standard HDMI-A full digital T.M.D.S.
Interface HDMI-D female interface
Signal Strength T.M.D.S +/-0.4Vpp
Mini/Max Electrical Level T.M.D.S 2.9V/3.3V
Input EDID EDID can be chagne
Max DC Bids Error 15mV
Specifications
Max consumption 12W
Product Weight About 0.5Kg
Max Input Distance 20m
