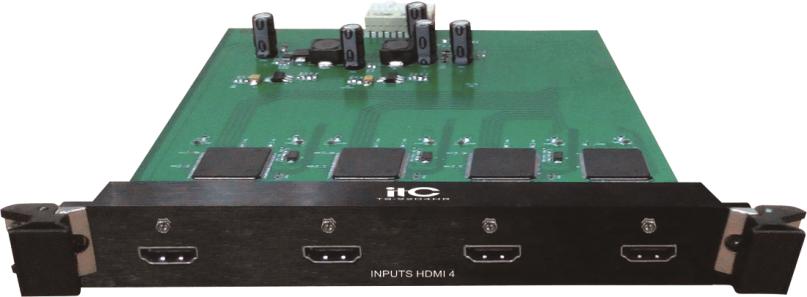

4 Channel HDMI Input Card

4 Channel HDMI Input Card

NV-MCMC-MCS-HR740

Description

Specifically design for the intelligent HD mixed Matrix Switchers, support 4- channel HDMI audio and video signal input, support Digital HD 1080P signal, EDID editing function,

high integrated UnPBX design can select card quantity according to your need, which brings great convenience for application and easy to maintenance.

Features

“4- channel HDMI-A female interface input.

  • The longest input distance is 20m.

“Pixel bandwidth: 225MHz, fully digital.

“Interface bandwidth: 3.25Gbps, fully digital.

“Support EDID editing function.

“Be compatible with the HDMI 1 .4 standard, HDCP 1 .4 protocol, DVI1 .0 protocol.

”Maximum support resolution:

HDPC: 1920 x 1200P@60_24bit, HDTV: 1920 x l080P@60_36bit.

  • Plug and play, very convenient.



Specifications

Model NV-MCMC-MCS-HR740
Interface 4-channel HDMI-A female interface input
Protocol Support HDMI 1.4 protocol, HDCP1.4 protocol, DVI 1 .0 protocol
Pixel Bandwidth 225MHz, full digital
Interface Bandwidth 3.25Ghps, full digital
Maximum Support  Resolution

HDCP: 1920 x 1200P@ 60_24bit

HDTV: 1920 x 1080P@60_36bit
Normal-PC: 1600 x 1200@60_24bit
Clock Jitter <0.15Tbit
Rise time <0.3Tbit (20%–80%)
Falltime <0.3Tbit (20%–80%)
Signal Type HADMI1.4 standard HDMI-A full digital T.M.D.S.
Interface HDMI-A female interface
Signal Strength T.M.D.S +/-0.4Vpp
Mini/Max Electrical level T.M.D.S 2.9V/3.3V
Input EDID EDID erasable
Max DI Bids Error 15mV
Specifications
Max consumption 12W
Product Weight About 0.5Kg
Max Input Distance 20m
