IP Network Audio Terminal

IP Network Audio Terminal

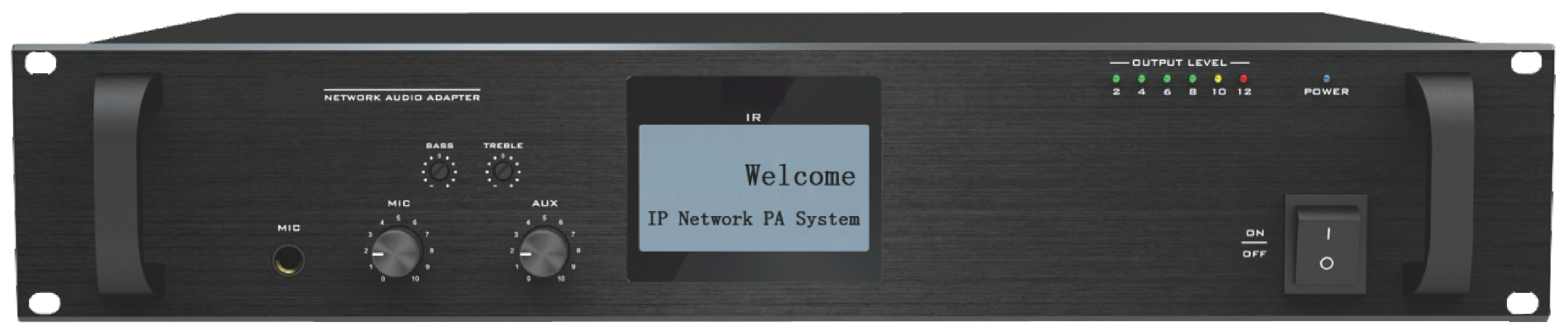

NV-IPIS-S10-484 is a popular model installed in low voltage room or sub control center, linking to 2 power amplifiers. It is ideal choice to broadcast in hall, corridor, outdoor areas etc.


  • It is a 19 inch mount IP/TCP network audio adapter, with black alumina panel, strong handle, professional mechanical assembly process, high-end appearance.
  • Built-in 3.4 inch LCD screen to clearly display most of lattice pattern and working state.
  • Embedded PC technology, built-in DSP Audio processing technology and high speed industrial chip to ensure start time less than 1 second.
  • Built-in single network hardware audio decoding module, support TCP/IP, UDP, IGMP (Multicast) protocol, transmit 16-bit stereo audio signal of CD quality through network.
  • 1 AUX and 1 Mic input. Support independent bass and treble adjustment and support offline local paging function.
  • 1 EMC input, for emergency alarm voice signal connection, with the highest priority.
  • 2 AUX output, to extend external power amplifier, RCA interface, easy connection.
  • 2-channel 3 wired relay output for volume control, no need extra 24V DC power supply, compatible with 4 wired fire alarm relay at the same time, which requires 24V strong power supply.
  • Built-in intelligent power management, automatic power off if no signal, output signal automatically open when there is power supply, support IP software preset programming to switch on the power.
  • Built-in 3 priority settings:
  • EMC is with the highest priority.
  • Network alarm is prior to MIC, AUX and BGM signal.
  • MIC is prior to AUX and BGM signal.
  • AUX and BGM is same without priority.
  • Support preset mute adjustment, background music, LED indicators, including the level, protection, standby indicator. Support authorized operation management, with unified configuration and management for user password by the server.
  • Support DHCP, compatible routers, switches, Bridges, Modem, Internet, 2G, 3G, 4G, multicast, unicast etc.
  • The digital products is more convenient for extension, no limit by the geographical position, no need increase management equipment for control center, sharing network to save cabling, or simple installation.
