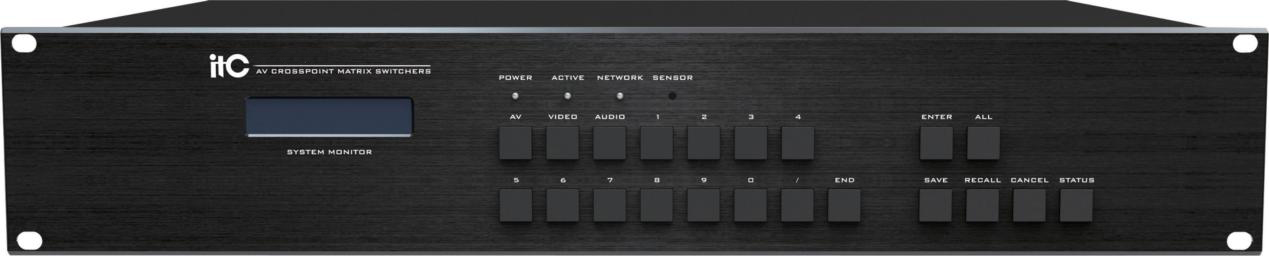

AV Series Professional Matrix Switcher
NV-MCMC-MCS-AV781
Description
AV series professional matrix switchers are high-performance intelligent switch equipment, designed for display and distribution of composite video switching & analog audio signals. It switches the multi-channel input to any output channel, which is independent of each other. It allows video and audio synchronous or asynchronous switching. AV series professional matrix switchers can be 24-hour standby and power-down switching and memory protection. It can be connected with computers, remote control systems & devices by RS232 port. AV series professional matrix switchers have full product lines, from AV8 to AV128 series. It is applied to any transmission for standard analog video and audio signals, widely used for a multimedia conference, radio and television projects, command and control, etc.
Features
* with 8/ 16 audio and video signal input, 2/4/8/16 channel output.

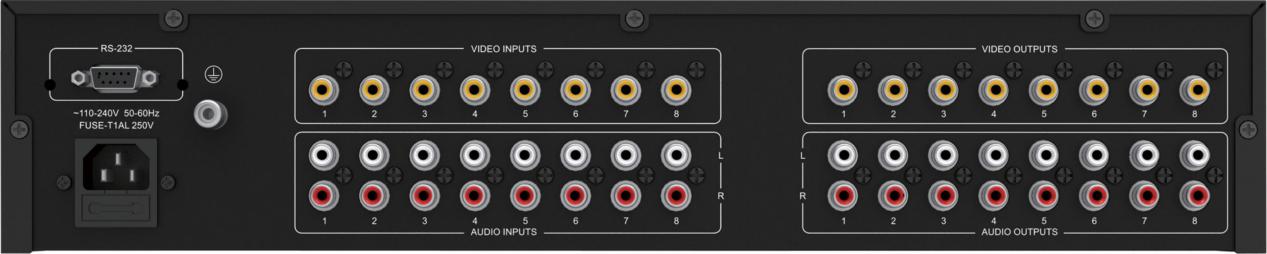

* With BNC & RCA Video interface; five Phoenix connectors or RCA for audio.
* Video bandwidth height 150MHz (-3dB) when fully load.
* With multiple presets and save units, with power-down memory function.
* LCDs the switching operation status, which can check the input/output channel
connection status with the panel keyboard.
* With infrared remote control and RS232 port.
* With fast switch for more efficient operation.
* Video signal types: composite video (signal).
* Audio signal types: stereo, balanced or unbalanced connection.
* With programmable logic array circuit and any interactive switch.
* Distortion compensation technology for long-distance signal transmission.
* Built- International General Electric.
Specifications
| Composite video signal | |
| Bandwidth | 150MHz (-3dB) full load |
| Input signal | Composite video signal |
| Input Port | RCA (8 series), BNC (16-128 series ) |
| Input Level | 0.5Vp-p ~ 2.0Vp-p |
| Input Impedance | 75Ω |
| Output Signal | Composite video |
| Output Port | RCA (8 series), BNC (16-128 series ) |
| Output Level | 0.5Vp-p ~ 2.0Vp-p |
| Output Impedance | 75Ω |
| RL | -30dB@5MHz |
| Synchronization Standard | NTSC, PAL, SECAM |
| Differential Phase error | 0.1 %, 3.58-4.43MHz |
| Differential Gain Error | 0.1 degree, 3.58-4.43MHz |
| Analog audio signal | |
| Bandwidth | 150MHz (-3dB) full load |
| Input Signal | Stereo ( balanced or unbalanced) |
| Input Port | RCA or 3.8mm screw lock |
| Input Level (max) | +19.5dBu |
| Input Impedance | > 10KΩ |
| Output Signal | Stereo ( balanced or unbalanced) |
| Output Port | RCA or 3.8mm screw lock |
| Output Level (max) | +21dBu |
| Output Impedance | >50Ω |
| Frequency Response | 20Hz~20KHz, +0.05dB |
| Noise Ratio (S/N) | >90dB |
| Stereo Channel Isolation | >80dB @ 1 KHz |
| Common Mode Rejection Ratio (CMRR) | >75dB @ 20 Hz ~ 20 KHz |
| Equipment | |
| Propagation | 5nS ( ±1nS) |
| Switching | 200nS ( maximum time ) |
| Average | 50000hours |
| Operating | -20℃~45℃ |
| Operating | 10%~90% |
| Supply | ~100-240V 50/60Hz |
