4 Channel SDI Output Card

4 Channel SDI Output Card

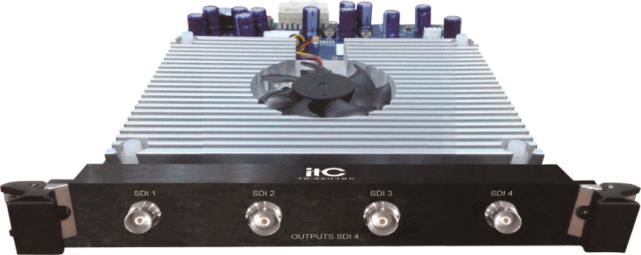

Specifically designed for the intelligent HD Mixed Matrix Switcher, it supports 4-channels SDI audio and video signal output, supports the transmission of a digital HD 1080P signal, with highly integrated board design. You can choose the quantity of board card according to demands, which brings great convenience for applications and maintenance.


  • Bandwidth is from 19Mbps to 2.97Gbps.
  • Adopt SYV75-5 cable whose longest output distance can reach 100m.
  • Be compatible with various kinds of SDI signal, including SD/HD/3G-SDI (Auto adaptable).
  • The MAX support DPI is 1080P and is completely compatible with HDTV.
  • Plug and play, very convenient




Output 4-Channel SDI signal
Port Female port BNC connector
Gain 0dB
Lock Rate Automatic
Operation Standard SMPTE 292M, SMPTE 259M, SMPTE 242M, ITU-RBT.601, ITU-RBT.1120
Input Return Loss >-14dB @ 1MHz – 1.5 GHz
Output Return Loss >-12dB @ 1MHz – 1.5 GHz
Maximum Rate 2.97Gbps
Data Type 8 or 10 bit
Input and Output Level 0.80Vp-p+/-10%
Input and Output Impedance 75Ω
Balanced Type Automatic
Maximum Output Distance 100m
Max power consumption 10W
Product Weight 0.8kg
