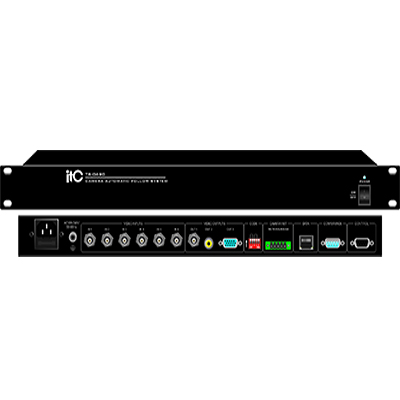

Auto Video Tracking Controller

Auto Video Tracking Controller



* Controller of video camera to integration with audio conference system.

* Automatic turn on the spokesman into the screen through the projector.

* Capacity of connection with 6 cameras.

* Capacity of each camera of 128 presets (for ceiling-mounted camera) and 62 presets (for wall-mounted camera).

* Easy and convenient setup and control through the English PC software.

* Support versatile control protocol like Samsung, Pelco-D & Visca.

* Support different communicate baud rate of 2,400, 4,800, 9,600 & 19,200 for high resolution picture.

* Support different resolution screen of 800×600,1024×768,1280×1024.

* With picture frozen feature during the camera rotation, so as to enjoy a comfortable picture shift.

* Picture frozen time could be set up from PC software from 0 to 6 seconds.

* Wide AC power input of 100V to 240V.

* Hi-pot test of more than 3,500V to ensure the electronic operation safety.

* Secure earth line grounded on both circuit and the metal case.

* Anti-interference of static electricity up to 8,000V.


Model NV-ACS-604-698
Description Auto Video Tracking Controller
AC Power Supply AC100-240V; 50~60Hz
Power Consumption 7W
Video Input BNC x 6 Balanced input
CVBS Input 0.5V∽1.5Vp-p
Input Impedance 75Ω
Output Impedance 75Ω
Video Output One BNC, one RCA & one VGA
RCA & BNC Output 0.5V∽1.5Vp-p
Video Bandwidth 8MHz
VGA Output 1280 x1024, 60Hz
Dimension (WxDxH) 484x210x44mm
Weight 3Kg
Color Black
