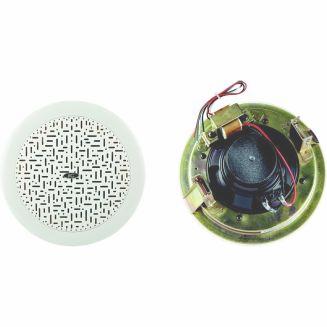

Waterproof Ceiling Speaker

Waterproof Ceiling Speaker



The NV-PASP-CGSP-GB232 is a mini ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distances and allows easy parallel connection of multiple loudspeakers.

The built-in 5″ speaker driver is designed of wide frequency response 110-16kHz, the multiple power taps 1.5W, 3W & 6W are helpful for different applications varies from room size and ambient noise surroundings. The Plastic enclosure and Plastic grille are painted in attractive white color. Its spring clamp makes the easy and secure installation.

It is an ideal choice for industrial and commercial applications in hotel, school, office, and factory where background music and paging is needed.


l  Built-in 100v/70v transformer

l  In-ceiling type loudspeaker

l  5” speaker unit

l  Power taps 1.5W, 3W & 6W @100V

l  Metal grille and metal baffle

l  Paint in white color

l  Fast installation by the spring clip




Rated power (100V) 1.5W, 3W, 6W
Rated power (70V) 0.75W, 1.5W, 3W
Impedance Black: COM   Red: 6.7KΩ  Green:  3.3KΩ  White 1.7 KΩ
Sensitivity (1W/1M) 92dB
Max sensitivity (W/1M) 100dB
Frequency response (-10dB) 110-16KHz
Speaker driver 5″  x 1
Cutout size 157mm
Dimensions 180 x 80mm
Weight 0.9Kg
Material Plastic enclosure + Plastic grille
