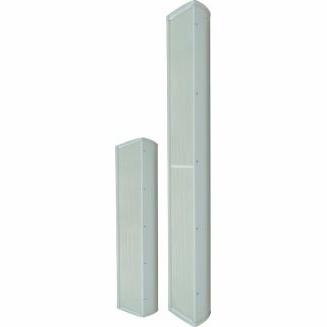

Outdoor Column Speaker
NV-PASP-CMSP-H188
Description
The all-weather high-power column speaker is built-in rated 200W output power amplifier and 6.5″ waterproof drivers, the two parts are well-sealed and isolated from each to avoid magnetic interference and noise, also the first-class components help to disperse full frequency response for background music and paging system.
It can remit sounds for a long distance because of its high-power broad band-wave speakers. The waterproof IPx6 rate and rust prevention processed metal enclosure can endure years of high performance, and the ABS top and bottom cover, the aluminum grille, and one metal pair of mounting brackets all are provided for easy mounting.
There are dual RCA line inputs with volume control, the AC 230V or 110V power supply input is provided with power switch and AC fuse.
Ideal for outdoor applications in train stations, schools, stadiums, shopping malls, parks, gardens, hospitals, and hotels, etc.
Features
- Built-in amplifier of all in one design
- Rated power output of 20 watts
- 6.5” two-way waterproof speaker system
- Steel enclosure and aluminum grille of rust prevention finish
- IPx6 waterproof level
- Wider dispersion range
- Mounting bracket is supplied
Specifications
| Model | NV-PASP-CMSP-H188 | NV-PASP-CMSP-H189 |
| Power(100V) | 200W | 400W |
| Sensitivity | 93dB | 95dB |
| Impedance | Black-COM White-50Ω | Black-COM White-25Ω |
| Frequency response | 90-20KHz | 90-20KHz |
| Waterproof rate | IP x 6 | IP x 6 |
| Size | 228 x 198 x 850mm | 228 x 198 x 1700mm |
| Drive units | 6.5″ x 4 | 6.5″ x 8 |
| Weight | 16.5Kg | 32.2Kg |
| Material | Fully aluminum alloy | Fully aluminum alloy |
