Weatherproof Horn Speaker

Weatherproof Horn Speaker

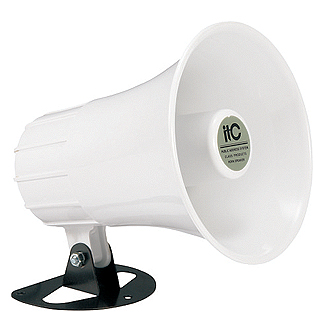

The NV-PASP-HNSP-E305 is a waterproof horn speaker for outdoor speech use of mini size design.

The built-in horn speaker driver is designed for wide frequency response 250-18kHz, the rated power output 10-15W could meet different applications varies on room size and ambient noise surroundings.

The ABS enclosure is designed for white color. Easy and secure wall mount installation through the supplied mounting bracket.

It is an ideal choice for industrial and commercial applications in the outdoor area of parking, playground, corridor, and park where paging is needed.


  • Low impedance version horn speaker
  • Waterproof projector type loudspeaker
  • IP66 waterproof level
  • Power output 10-15W
  • ABS enclosure and metal bracket




Rated power
Impedance Black, White: Com  Black: 8Ω
SPL(1W/1M) 102dB±3dB
Max. SPL (Rated W/1M) 112dB
Frequency Response (-10dB) 250-18KHz
Finish Baffle: ABS, White
IP Rate IPx6
Dimensions 130 x 150mm
Weight 0.5Kg
Mounting With mounting bracket fixed by screw
