NV-ADA-MIX-B35

NV-ADA-MIX-B35

NV-ADA-MIX-B35

Descriptions

The basic public address mixer amplifiers have power ratings from 60W.

They are featured of 3 microphone inputs, 2 aux inputs, and 1 EMC input.

Priority muting is achieved via EMC for overriding other inputs except for Mic1 on the front panel.

Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls, and

master volume control are provided for overall tone control. 70V, 100V, and low impedance

4-16Ω speaker outputs are provided. Extensive protection for short-circuit, overload

, and high temp.

Features

* Mixer amplifier for paging and background music system.

* Rated power from 120W.

* 2U rackmount design.

* 70V, 100V, and low impedance 4-16Ω speaker output.

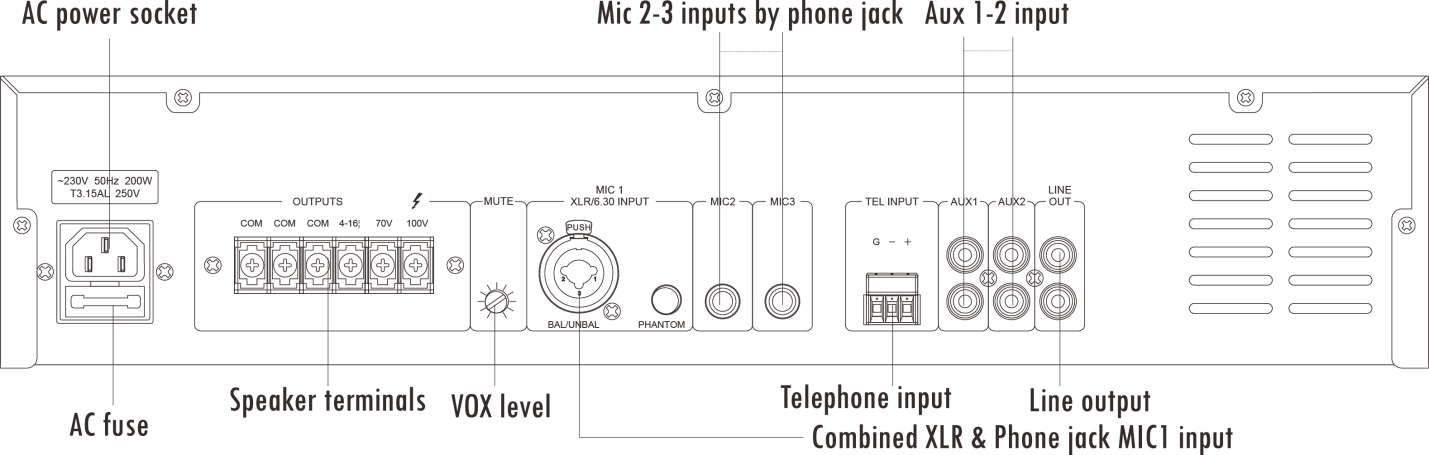

* Three Mic inputs by phone jack type.

* Mic 1 with VOX priority and VOX level on the front panel.

* Mic 2-3 by phone jack on the rear panel.

* Two Aux Inputs and 2 line inputs for spare use.

* One EMC priority input.

* EMC has priority over all inputs except MIC1.

* Mic 1-3, Aux 1-2, and master volume controls and bass/treble tone control.

* Short circuit, overload, and high temp protection.

Optional

* DC 24V is available on less than 500W models.

* Panel with/without a handhold.

* Faults monitoring module, it can output short circuit signal to achieve main/spare

amplifier switch.

Specifications

Model NV-ADA-MIX-B35 NV-ADA-MIX-B36 NV-ADA-MIX-B37
Rated Power Output 60W 120W 240W
Speaker Outputs 70V, 100V & 4~16Ω
Input Sensitivity & Impedance MIC 1, 2, 3: 5mV/600Ω, Unbalanced phone jack input
MIC 2, 3: 775mV/10KΩ, Unbalanced RCA input
AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input
EMC: 775mV/10KΩ, Unbalanced DG7.62 input
Output Sensitivity & Impedance MIX OUT: 1V/470Ω, Unbalanced RCA output
Tone Bass: ±10dB at 100Hz
Treble: ±10dB at 10KHz
Frequency Response 50Hz~16KHz (+1dB, -3dB)
S/N Ratio MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB
THD Less than 0.5% at 1KHz, 1/3 rated power
Muting Function MIC 1 overrides other input signals
with 0-30dB attenuation
Crosstalk ≤50dB
Cooling Fan automatically starts up when temp reaches 55℃
Protection High temp, overload & short-circuit
Power Supply ~110V-230V 50/60Hz
Power Consumption 100W 200W 400W
Weight 7.48Kg 9.58Kg 11.68Kg
Dimensions 484 x 303 x 88mm 484 x 303 x 88mm 484 x 358 x 88mm
Finish Panel: aluminum plate, black
Case: SPCC Panel
