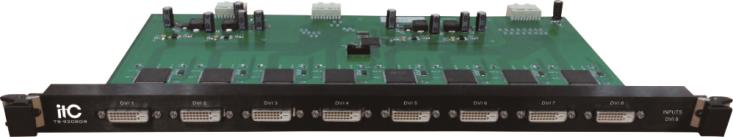

8 Channel DVI Audio Video Input Card

8 Channel DVI Audio Video Input Card



Specifically designed for the intelligent HD Matrix Switcher, it supports 8-channels DVI audio and video signal input, supporting Digital HD 1080P signal, EDID editing function, high integrated UnPBX design, can select card quantity according to your need, which brings great convenience for applications and maintenance.


  • 8- channel DVI-D female port input.
  • The longest input distance is 20m.
  • Pixel bandwidth: 225MHz, full digital.
  • Interface bandwidth: 3.25Gbps, full digital.
  • Support EDID editing function.
  • Compatible with the HDMI 1 .4 standard, HDCP 1 .4 protocol, DVI1 .0 protocol.
  • Maximum support resolution: HDPC: 1920 x 200P@60_24bit, HDTV: 1920 x l080P@60_36bit.
  • Plug and play, very convenient.



Protocol Support HDMI 1.4 protocol, HDCP1.4 protocol, DVI 1 .0 protocol
Pixel Bandwidth 225MHz, full digital
Port Bandwidth 3.25Gbps, full digital
Maximum Support  Resolution Normal-PC: 1600 x 1200@60_24bit
HDTV: 1920 x 1080P@60_36bit
HDCP: 1920 x 1200P@ 60_24bit
Clock Jitter <0.15Tbit
Rise time <0.3Tbit (20%–80%)
Falltime <0.3Tbit (20%–80%)
Signal Type DVI1.0 standard DVI-D full digital T.M.D.S. Signal
Signal Strength T.M.D.S +/-0.4Vpp
Mini/Max Electrical Level T.M.D.S 2.9V/3.3V
Input EDID EDID can be changed
Max DC Bids Error 15mV
Max consumption 12W
Product Weight About 0.4Kg
Max Input Distance 20m
