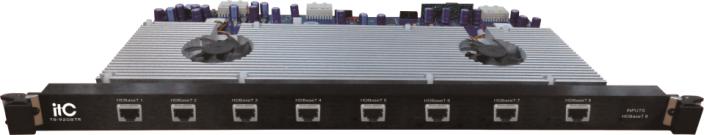

8 Channel HD BaseT Input Card

8 Channel HD BaseT Input Card

NV-MCMC-MCS-TR760

Description

Specifically designed for the intelligent HD Mixed Matrix Switcher, it supports 8-channels high-speed RJ45 Interface input, supporting the transmission of digital HD 1080P signal, with highly integrated board design. You can select any number of card arbitrarily according to your demands, which brings great convenience for applications and maintenance.

Featured

  • 8- channel high-speed RJ45 Interface input.
  •  Use CAT5e/6 wire, the longest distance is 20m.
  • Pixel bandwidth: 225MHz, full digital.
  • Interface bandwidth: 3.25Gbps, full digital.
  • Support EDID editing function.
  • Compatible with HDBaseT Protocol.
  • Maximum support resolution: HDPC: 1920 x 200P@60_24bit, HDTV: 1920 x l080P@60_36bit.
  • Plug and play, very convenient.



Specifications



Model NV-MCMC-MCS-TR760
Interface 8-channels high-speed RJ45 Interface input
Pixel Bandwidth 225MHz, all digital
Port Bandwidth 3.25Gbps, all digital
Max Support  Resolution Normal-PC: 1600 x 1200@60_24bit
HDTV: 1920 x 1080P@60_36bit
HDCP: 1920 x 1200P@ 60_24bit
Signal Type High-speed differential signal defined in HDBaseT protocol
Specifications
Max Power Consumption 40W
Product Weight About 1Kg
Max Input Distance 100m
