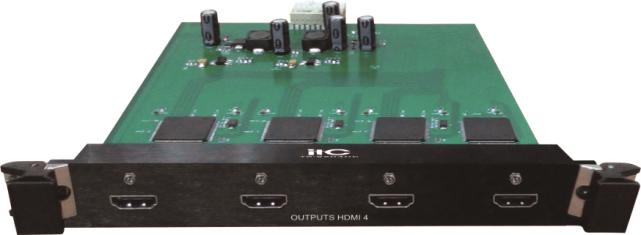

4 Channel HDMI Output Card

4 Channel HDMI Output Card



Specifically design for the intelligent HD mixed Matrix Switchers, support 8- channel HDMI audio and video signal output, support Digital HD 1080P signal, high integrated UnPBX design can select card quantity according to your need, which brings great convenience for application and easy to maintenance.


“8- channel HDMI-A female interface output.

  • The longest input distance is 20m.

“Pixel bandwidth: 225MHz, fully digital.

“Interface bandwidth: 3.25Gbps, fully digital.

“Support EDID editing function.

“Be compatible with the HDMI 1 .4 standard, HDCP 1 .4 protocol, DVI1 .0 protocol.

”Maximum support resolution:

HDPC: 1920 x 1200P@60_24bit, HDTV: 1920 x l080P@60_36bit.

  • Plug and play, very convenient.


Interface 8-channel HDMI-A female interface output
Protocol Support HDMI 1.4 protocol, HDCP1.4 protocol, DVI 1 .0 protocol
Pixel Bandwidth 225MHz, full digital
Interface Bandwidth 3.25Gbps, full digital
Maximum Support  Resolution

HDCP: 1920 x 1200P@ 60_24bit

HDTV: 1920 x 1080P@60_36bit
Normal-PC: 1600 x 1200@60_24bit
Clock Jitter <0.15Tbit
Rise time <0.3Tbit (20%–80%)
Falltime <0.3Tbit (20%–80%)
Signal Type HADMI1.4 standard HDMI-A full digital T.M.D.S.
Signal Strength T.M.D.S +/-0.4Vpp
Mini/Max Electrical level T.M.D.S 2.9V/3.3V
Input EDID EDID erasable
Max DC Bids Error 15mV
Max consumption 10W
Product Weight About 0.5Kg
Max Output Distance 20m
