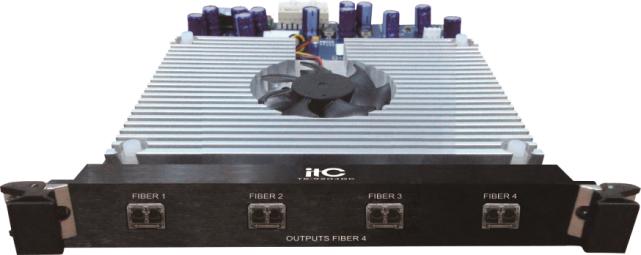

4 Channel Optical Fiber Output Card

4 Channel Optical Fiber Output Card

NV-MCMC-MCS-GC749

Description

Specifically designed for digital HD Mixed insertion Matrix Switcher, it supports four channels high-speed dual-core LC fiber interface output and also supports digital 1080P HD signal. Farthest transmission distance can reach 20km. Integrated board card design. Can choose the quantity of board card at will as needed, which brings much convenience for applications and maintenance.

Featured

  • 4- channel optical fiber signal output.
  • The highest resolution ratio supported can reach 1080P.
  • Can be applied for LC single-core signal mode technology, and the farthest transmission distance can reach 20km.
  • All-digital zero compression technique of high-performance signal transmission is applied.
  • The biggest resolution ratio input supported: HDPC: 1920 x 1200P@60_24bit, HDTV: 1920 x l080P@60_36bit.
  • Plug and play, very convenient



Specification



Model NV-MCMC-MCS-GC749
Output 4-channel Optical Fiber Signal (Single core and single-mode)
Output Connector 4-channel LC Optical Fiber Connector
Transmission power -5dB (Standard)
Maximum Wastage 13dB
Wavelength Multimode 850nm /Single-mode: 1310 – 1620nm (Optional)
Multimode Fiber Standard 50/125µm
Single Mode Fiber Standard 9/125µm
Bandwidth Of Port 3.25Gbps, Full digital
Clock Jitter >0.15 Tbit
Risetime >0.3 Tbit (20%–80%)
Fulltime >0.3 Tbit (20%–80%)
Farthest Output Distance



0M3 For Multimode Fiber: Less than 500m, single-mode

Fiber: 2- 20km

Specification

Max power consumption 8W
Product Weight 0.8kg
