Waterproof Landscape 12.5W & 25W Garden Speaker

Waterproof Landscape 12.5W & 25W Garden Speaker

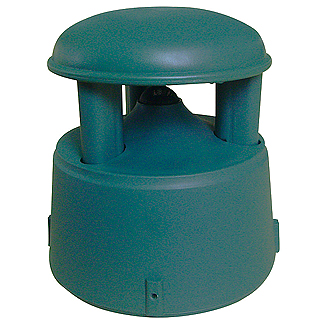

The NV-PASP-GDSP-A339 is a landscape garden speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distances and allows easy parallel connection of multiple loudspeakers.

The built-in 5” waterproof speaker driver is designed of wide frequency response 110-14kHz, the multiple power taps of 12.5W & 25W could meet different applications varies from room size and ambient noise surroundings.

The organic resin enclosure is of green color and of weatherproof and heavy damage proof finish. Easy and secure wall mount installation in the outdoor area.

It is an ideal choice for park, playground, swimming pool, and garden, etc outdoor applications where background music and paging is needed. It is designed for IP66 waterproof level, so it could be directly exposed to outdoor severe environment, the organic resin material is strongly resistant to cold, snow, ice, high temp, and sunshine.


  • Built-in 100v/70v transformer
  • Landscape garden loudspeaker for park or garden use
  • 5” waterproof speaker driver
  • Power taps at 12.5W & 25W @100V
  • Organic resin material of green color
  • Heavy damage proof finish




Power Taps @100V 12.5W, 25W
Power Taps @70V 6.25W, 12.5W
Impedance Yellow, Green: Com   Blue: 800Ω  Brown: 400Ω
SPL(1W/1M) 90dB
Max. SPL (Rated W/1M) 104dB
Frequency Response (-10dB) 100-14KHz
Finish ABS
Speaker Driver 5″ x 1
IP Rate IPx6
Cutout Size 95 x 95 x 95 x 95mm
Dimensions(mm) H:355
Weight 3.8Kg
