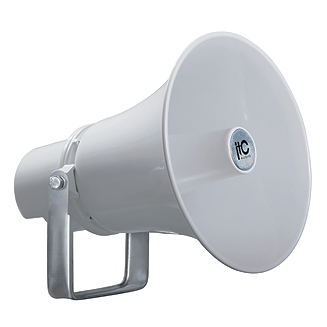

Weatherproof Aluminum Horn Speaker

Weatherproof Aluminum Horn Speaker

NV-PASP-HNSP-G309

Description

The NV-PASP-HNSP-G309 is a waterproof horn speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distances and allows easy parallel connection of multiple loudspeakers.

The built-in horn speaker driver is designed for wide frequency response 300-13kHz, the multiple power taps 15W & 30W are helpful for different applications varies from room size and ambient noise surroundings.

The aluminum enclosure and stainless metal bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.

It is an ideal choice for industrial and commercial applications in the outdoor area of parking, park, garden, corridor, and playground where paging is needed.

Features

  • Built-in 100V/70V transformer
  • Waterproof projector type loudspeaker
  • Supreme longer distance dispersion horn speaker
  • IP66 waterproof level
  • Power taps15W-30W @100V
  • Aluminum enclosure & flare and stainless metal bracket



Specifications



Model NV-PASP-HNSP-G309
Power Taps @ 100V 15W, 30W
Power Taps @ 70V 7.5W, 15W
Max Power Output 60W
Impedance Black-Com  Green: 670Ω  White: 330Ω
Frequency Response 300-13KHz
Sensitivity 102dB±3dB
IP Rate IP x 6
Dimension 230 x 230 x 300mm
Weight 2.4Kg
