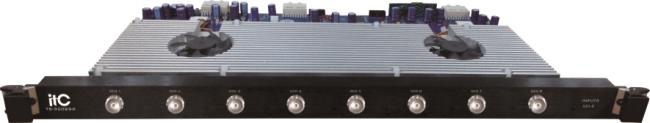

8 Channel SDI Input Card

8 Channel SDI Input Card

NV-MCMC-MCS-SR766

Description

Specifically designed for the intelligent HD Mixed Matrix Switcher, it supports 8-channels SDI audio and video signal input, supports the transmission of digital HD high 1080P signal, with highly integrated board design. You can any number of card according to demands, which brings great convenience for applications and maintenance.

Featured

  • Bandwidth is from 19Mbps to 2.97Gbps.
  • Adopt SYV75-5 cable whose longest output distance can reach 100m.
  • Be compatible with various kinds of SDI signals, including SD/HD/3G-SDI (Auto adaptable).
  • The MAX support DPI is 1080P and is completely compatible with HDTV.
  • Plug and play, very convenient.



Specification

Model NV-MCMC-MCS-SR766
Input 8-Channel SDI signal
Port Female port BNC connector
Gain 0dB
Lock Rate Automatic
Operation Standard SMPTE 292M, SMPTE 259M, SMPTE 242M, ITU-RBT.601, ITU-RBT.1120
Input Return Loss <-14dB @ 1MHz – 1.5 GHz
Output Return Loss <-12dB @ 1MHz – 1.5 GHz
Maximum Rate 2.97Gbps
Data Type 8 or 10 bit
Input and Output Level 0.80Vp-p+/-10%
Input and Output Impedance 75Ω
Balanced Type Automatic
Maximum Output Distance 100m
 Specifications
Max power consumption 20W
Product Weight 1.2kg
