Ceiling Speaker

Ceiling Speaker

NV-PASP-CGSP-M227

Description

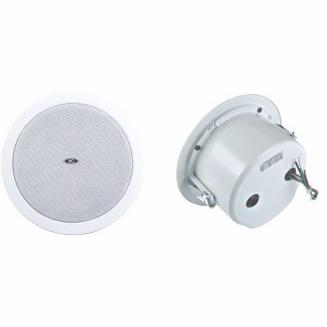

The NV-PASP-CGSP-M227 is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distances and allows easy parallel connection of multiple loudspeakers.

The built-in 8” speaker driver is designed for wide frequency response 90-20KHz, the multiple power taps 1.87W, 3.75W, 7.5W & 15W are helpful for different applications varies from room size and ambient noise surroundings. The metal grille, metal baffle, and metal back cover are painted in attractive white color. Its spring clip clamp makes the easy and secure installation.

It is an ideal choice for industrial and commercial applications in hotel, school, office, and factory where background music and paging is needed.

Features



Ceiling Speaker Built-in 100v/70v transformer

In-ceiling type loudspeaker

8” speaker unit

Power taps 1.87W, 3.75W, 7.5W & 15W @100V

Metal grille, metal baffle and metal back cover

Paint in white color

Spring clip clamp installation type



Specifications



Model NV-PASP-CGSP-M227
Rated power (100V) 1.87W, 3.75W, 7.5W, 15W
Maximum power 30W
sensitivity 90dB
Impedance black-COM  blue-5.3KΩ  red-2.7KΩ
Frequency response white-1.3KΩ  green-0.67KΩ
speaker unit 90-20KHz
Size of mounting hole 8″ x 1  1″ x 1
Dimensions 230mm
weight 265 x 110mm
Material 1.6Kg
