16-channel HDMI Matrix Switcher

16-channel HDMI Matrix Switcher

NV-MCMC-MCS-A735

Description

HDMI audio/video matrix switcher is a high-performance and professional matrix switcher which embedded intelligent control. Transmission with the transfer rate of 3.25Gbps and perfectly supports synchronous switching of HDMI audio/video signals, adapts to 7 x 24 uninterrupted work status and the average trouble-free working time is more than 30,000 hours, which provides a stable and reliable high-definition audio and video signal transmission switching hub for the system. It is widely applied in digital video multi-screen display systems, broadcasting systems, multimedia video conferences, large screen display systems, high definition television teaching, visual command control center, medical teaching, etc.

Features

* Support 16 Channels HDMI audio/video signal input and 16 Channels HDMI audio/video signal output.

* Board plug-in structure: support board heat plug.

* Support extended HDMI output seamless switching function.

* Support HDCP management, can set encrypt and decrypt HDCP contents, ensure the signal source display properly.

* Support EDID management can store 8 groups of EDID data. Allow reading the EDID of an output device or stored EDID and applying them to any input cards, can send EDID codes to EDID storage area via the serial ports, can read the current output EDID codes via the serial port.

* With power-off memory function and scene memory function: with power-off site protection function; can save and call 10 switching states.

* Support forward high-speed channel and embedded control signal separation switching modes.

* Support full HD: HDPC:1920×[email protected]_24bit, HDTV:1920×[email protected]_36bit.

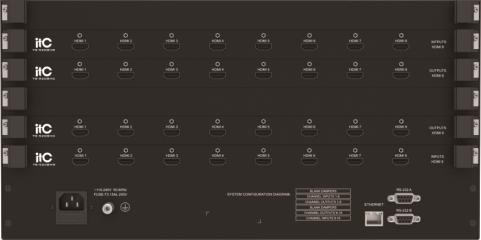

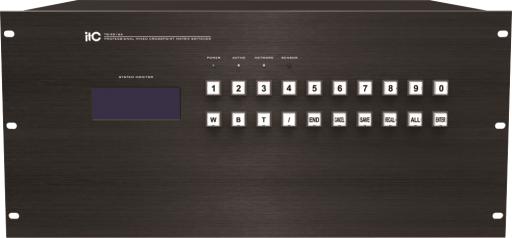

* Luxury crystal buttons with luminous indicator function, the current switching information can be obtained directly from the LCD screen, easy to operate.

* Support 3D, HDMI 1.4, HDCP1.4, and DVI 1.0 protocol. Support high color depth, and up to 3.25Gbps rate.

* With 2 Channels RS-232 communication interface.

* With 1 channel network port, can remote control via Ethernet.

* Built-in international universal power supply.



Specifications



Model NV-MCMC-MCS-A735
Video
Protocol Support HDMI1.4 protocol, HDCP1.4 protocol, DVI1.0 protocol
Gain 0 dB
Pixel Bandwidth 225MHz, full digital
Interface Bandwidth 3.25Gbps, full digital
Max Support Resolution

HDPC: [email protected] 60_24bit

HDTV: [email protected]_36bit

Bit Clock Jitter <0.15 Tbit
Bit Rise Time <0.3Tbit (20%–80%)
Bit Fall Time <0.3Tbit (20%–80%)
Max Transmission Delay 5nS(±1nS)
Switching Speed 200 ns(Max duration)
Signal Type HDMI 1.4 standard HDMI-A full digital T.M.D.S signal
Video Input
Interface HDMI-A female interface
Signal Strength T.M.D.S +/- 0.4Vpp
Max/min Level T.M.D.S 2.9V/3.3V
Input EDID EDID can be erased presently
Impedance 50Ω
Max DC Offset Errors 5mV
Max Input Distance 20m
Video Output
Interface HDMI-A female interface
Max/min Level T.M.D.S 2.9V/3.3V
Impedance 50Ω
 Max Input Distance  20m
Serial Port Control
Quantity 2
Serial Control Interface RS-232, 9-pin female D type interface
Baud Rate And Protocol baud rate: 9600, data bit: 16-bit, stop bit: 1, white parity bit
Serial Port Control Structure 2=TX, 3=RX, 5=GND
Ethernet Control RJ-45 female interface
Ethernet Control Interface TCP/IP
Ethernet Control Protocol
Ethernet control Rate Adaptive 10M/100M, full duplex or half duplex
Specification
Max Power Consumption 208W
Weight About 10kg
Operating Temperature -20℃~+70℃
Environmental Humidity 20% to 80% relative humidity, non-condensing
Input Power ~100-240V 50/60Hz
Rack Dimension 5U
MTBF 30,000 hours
Dimension (mm) 484(L)×356(W)×220(H)
