4 Channel DVI Input Card

4 Channel DVI Input Card

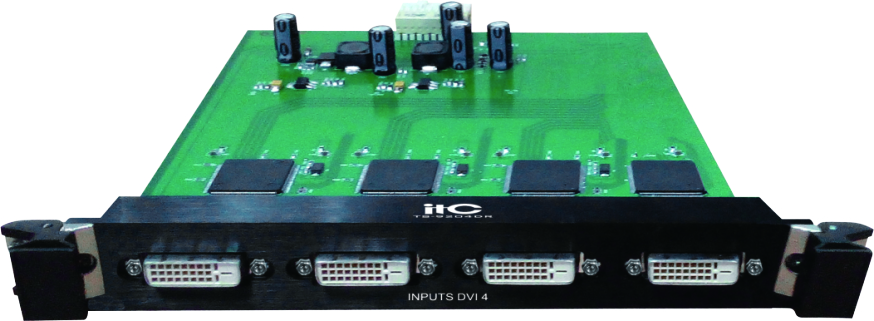

Specifically designed for the intelligent HD Matrix Switchers, it supports 4- channel DVI video signal input, support for Digital HD 1080P signal, EDID editing function, high integrated board design, board card quantity can be adjusted according requirements, have great convenience for application and easy to maintenance.


“4- channel DVI-D female port input.

  • The longest distance is 20m.

“Pixel bandwidth: 225MHz, fully digital.

“Interface bandwidth: 3.25Gbps, fully digital.

“Support EDID editing function.

“compatible with the HDMI 1 .4 standard, HDCP 1 .4 protocol, DVI1 .0 protocol.

”Maximum support resolution:

HDPC: 1920 x 200P@60_24bit, HDTV: 1920 x l080P@60_36bit.

  • Plug and play, very convenient.




Interface 4-channel DVI-D female port input
Protocol Support HDMI 1.4 protocol, HDCP1.4 protocol, DVI 1 .0 protocol
Pixel Bandwidth 225MHz, full digital
Port Bandwidth 3.25Gbps, full digital
Maximum Support  Resolution

HDCP: 1920 x 1200P@ 60_24bit

HDTV: 1920 x 1080P@60_36bit
Normal-PC: 1600 x 1200@60_24bit
Clock Jitter <0.15Tbit
Rise time <0.3Tbit (20%–80%)
Falltime <0.3Tbit (20%–80%)
Signal Type DVI1.0 standard DVI1.0 full digital T.M.D.S.
Signal Strength T.M.D.S +/-0.4Vpp
Mini/Max Electrical level T.M.D.S 2.9V/3.3V
Input EDID EDID can be chagne
Max DC Bids Error 15mV


Max consumption 7W
Product Weight About 0.4Kg
Max Input Distance 20m
